Description
| Gross weight | 0.342 Kg |
| Net weight | 0.338 Kg |
| Volume | 1.001 Liter |
| EAN | 5702421556603 |
| Approval standard | EC EN 60730 |
| Cable length [m] | 1.5 m |
| China RoHS compliance | Out of scope |
| Compatibility with AB-QM size | DN 10-32 |
| Control input signal Y [mA] | 0(4) – 20 mA |
| Control input signal Y [V] | 0(2) – 10 V |
| Control signal type | Modulating |

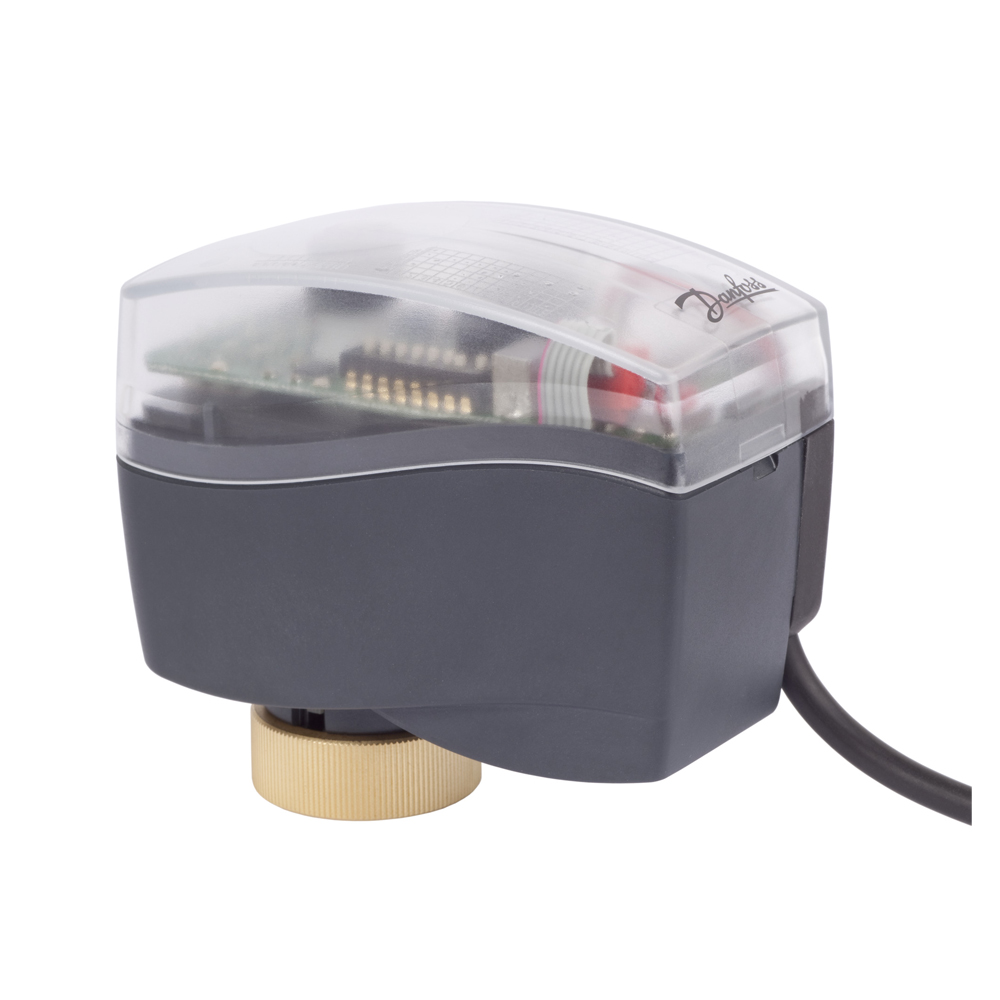

| Description | AME 110 NL, 24 V, 5 mm, actuator for modulating control for AB-QM DN 10-32 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP 42 |
| Product group | Gear actuators |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 1a7d963c-4bcb-4cdc-9664-6ba05408d797 |
| SCIP dossier product name | AMI. AME/AMV (1) |
| Spindle speed [s/mm] | 24 s/mm |
| Stroke [mm] | 5 mm |
| Supply voltage [V] AC | 24 V |
| Type | AME 110/120 NL 0-10V |
| UK RoHS compliance | Out of scope |
