Description
| Gross weight | 0.712 Kg |
| Net weight | 0.704 Kg |
| Volume | 3.529 Liter |
| EAN | 5710104034454 |
| Approval standard | EC EN 60730 |
| Cable included | No |
| China RoHS compliance | Out of scope |
| Compatibility with AB-QM size | DN 40-100 |
| Control characteristic | Alpha LIN LOG |
| Control input signal Y [mA] | 0(4) – 20 mA |
| Control input signal Y [V] | 0(2) – 10 V |
| Control signal type | Modulating |

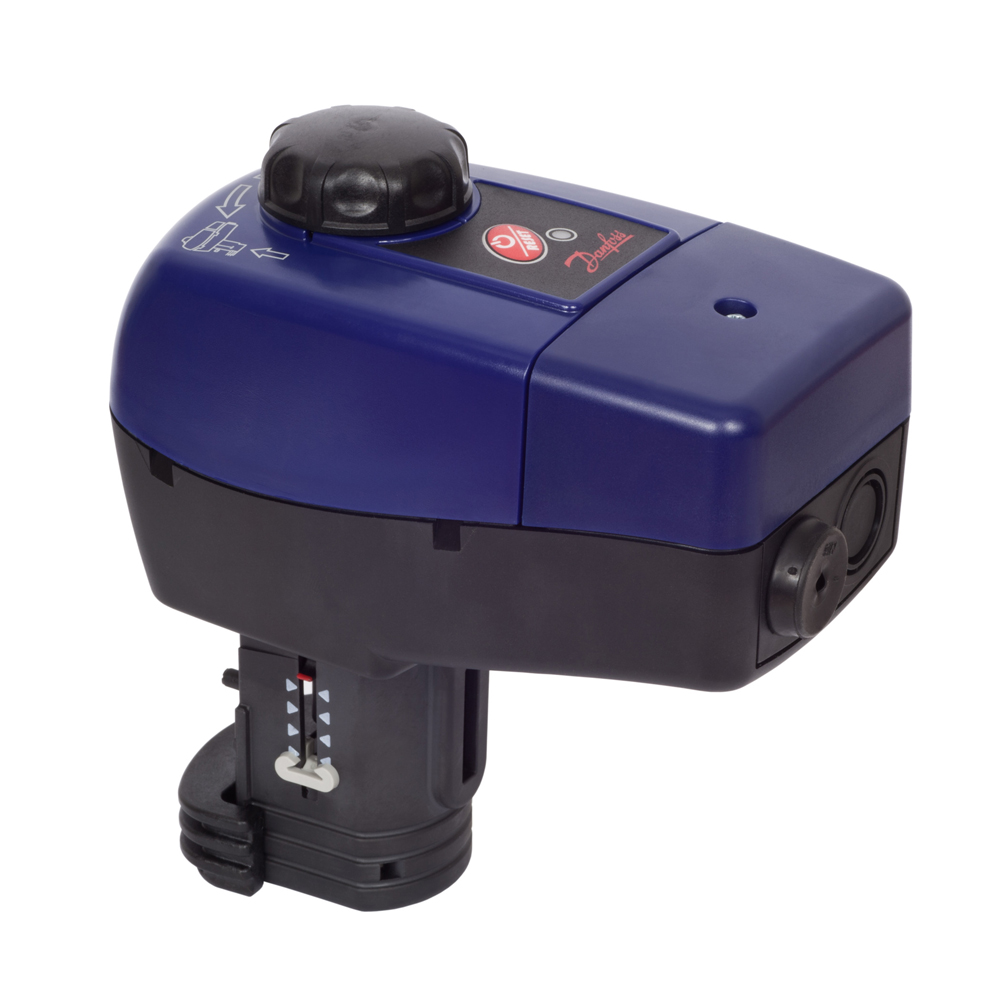

| Description | AME 435 QM, 24 V, 20 mm, actuator for modulating control for AB-QM DN 40-100 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP 54 |
| Product group | Gear actuators |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 1cba026d-1513-47bf-bff3-afc65301c190 |
| SCIP dossier product name | AME 435 QM 24V 7.5-15s/mm 20mm 400N |
| Spindle speed [s/mm] | 8 s/mm |
| Stroke [mm] | 20 mm |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Type | AME 435 QM |
| UK RoHS compliance | Out of scope |
